LOAD LINK ĐO TẢI TRỌNG SAINTBOND LC221W

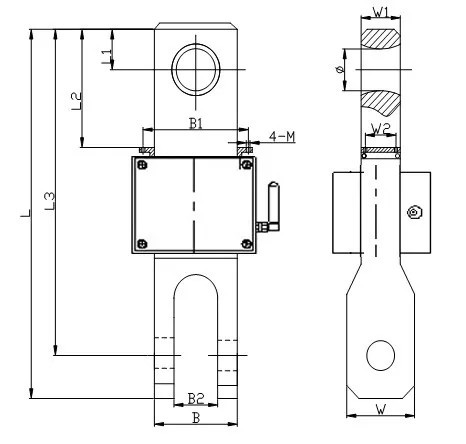

Cap./Size

L

L1

L2

L3

B

B1

B2

M

W

W1

W2

φ

1~5t

228

25

73

216

55

84

29

5

45

26

18

27

7.5~10t

281

32

86

249

60

98

34

6

60

38

23

33

15~20t

331

40

110

300

85

125

50

8

75

55

40

44

Rated Load:

1t/2t/3t/5t/10t/20t

Input Resistance:

750±5Ω

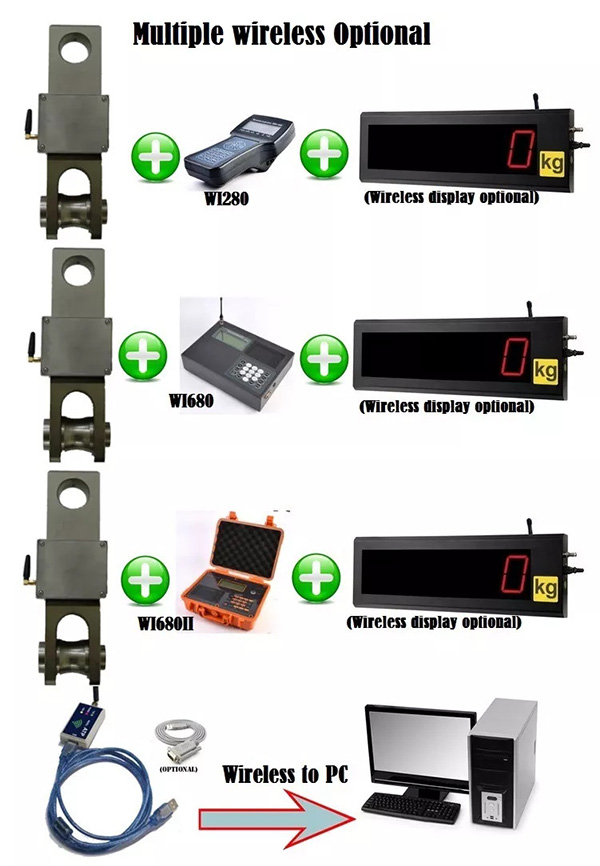

Wireless Frequency:

430~485MHz

Output Resistance:

702±2Ω

Wireless Distance:

Min:800m(default)

Insulation Resistance:

≥5000MΩ

A/D Conversion Rate:

≥50 times/seconds

Operating Temp. Range

-30~+70℃

Battery Life:

≥50 hours

Max.Safe Over Load:

120%F.S

Sensitivity:

(1.5±0.1%) m V/V

Ultimate Over Load:

200%F.S

Combined Error:

±0.02% F.S

Recommend Excitation:

10~12V DC

Creep Error(30min):

±0.02% F.S

Maximum Excitation:

15V DC

Zero Balance:

±1% F.S

Sealing Class:

IP67

Temp. Effect On Zero:

±0.02% F.S/10℃

Element Material:

Alloy /Stainless Steel

Temp. Effect On Span:

±0.02% F.S/10℃

Citation:

GB/T7551-2008/OIML R60
